LM338K

The LM338K is a high-performance voltage regulator designed for various applications requiring adjustable output voltage. It is part of the LM338 series, which features a three-terminal design that allows for easy integration into electronic circuits. The device can deliver an output current of up to 5A, making it suitable for powering devices with significant power requirements.

The LM338K operates within an input voltage range of 1.25V to 37V, allowing it to accommodate a wide variety of input sources. Its adjustable output voltage can be set from 1.25V to approximately 30V using external resistors in a feedback configuration, providing flexibility in circuit design. The typical dropout voltage is around 3V at full load conditions, which must be considered when designing power supply circuits.

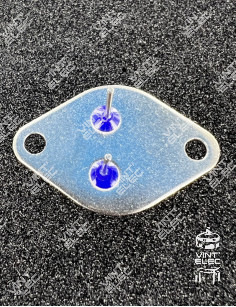

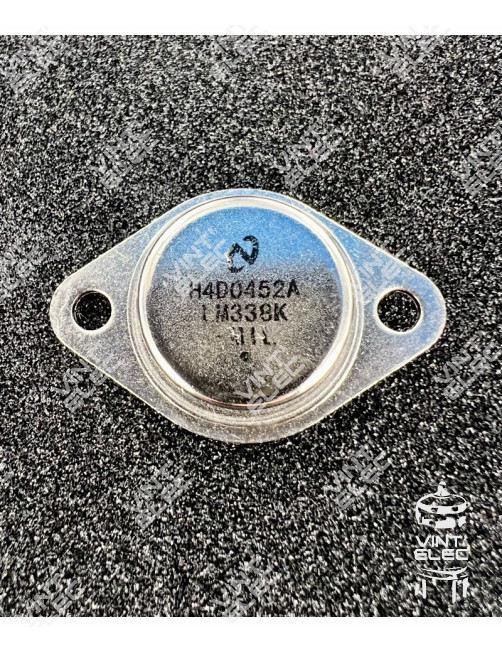

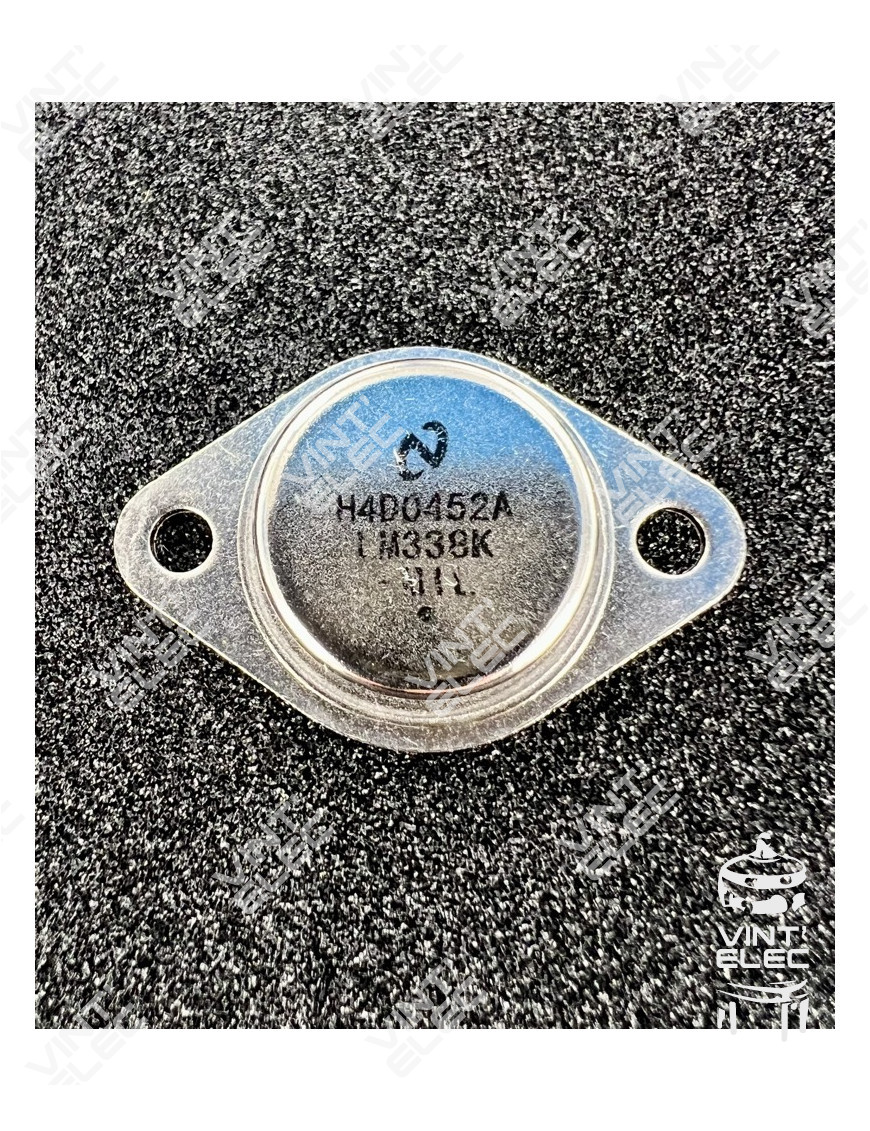

Thermal performance is crucial for the LM338K; therefore, it comes in a TO-3 package that facilitates efficient heat dissipation through appropriate heatsinking methods. The device features built-in thermal overload protection and current limiting capabilities to prevent damage under fault conditions.

In terms of stability and transient response, the LM338K exhibits excellent performance characteristics with low output noise and good line/load regulation metrics. It has a maximum operating temperature rating of +125°C and operates efficiently across various environmental conditions.

For applications requiring higher precision or specific operational parameters, designers should refer to the manufacturer's datasheet for detailed specifications regarding electrical characteristics such as quiescent current consumption and ripple rejection ratios.

Overall, the LM338K serves as an effective solution for adjustable linear regulation needs in consumer electronics, industrial equipment, and other electronic systems where reliable power management is essential.
